Tools and materials for handling flattened optical cables

Proper handling of flattened optical cables requires specialized tools, protective materials, and adherence to strict installation and cleaning procedures to prevent damage and signal loss.

Essential Tools

• Fusion Splicer: Devices like Fujikura 90S/70S+ are used for permanent fiber joins, ensuring minimal splice loss (≤0.02 dB) during repairs or installations .
• Optical Test Equipment: Includes OTDRs, power meters, and Visual Fault Locators (VFL) to detect faults, verify splices, and measure insertion loss .
• Precision Cleavers: Produce end-face angles <1° for high-quality fusion splices .
• Strippers and Cutters: Three-hole strippers for coating removal (250µm → 125µm) and heavy-duty shears for cutting cable jackets and aramid yarn .
• Cleaning Tools: One-click LC/SC cleaners, lint-free wipes, and IPA pens to maintain clean connectors and ferrules .
• Protective Sleeves: Heat-shrink sleeves (60 mm / 2.4 in) for protecting fusion splices .
• Non-Intrusive Identifiers: Detect signal direction and traffic presence on live fibers without disrupting service .

Handling and Installation Materials

• Pulling Socks: Used to hoist flattened cables without damaging connectors or fan-out assemblies .
• Cable Clamps: Secure cables at intervals (typically every 1 meter) to prevent stress and maintain proper bending radius .
• Dust Caps: Protect ferrules and connector endfaces from contamination during storage and installation .
• Lint-Free Wipes and Isopropyl Alcohol: For cleaning ferrules and connectors before splicing or connecting .

Best Practices for Flattened Optical Cables

• Visual Inspection: Check for damage from transportation or environmental hazards before installation .
• Respect Minimum Bending Radius: Avoid bending below the manufacturer-specified radius to prevent fiber breakage .
• Avoid Sharp Edges and Heavy Loads: Do not place hard objects on cables or allow contact with sharp surfaces .

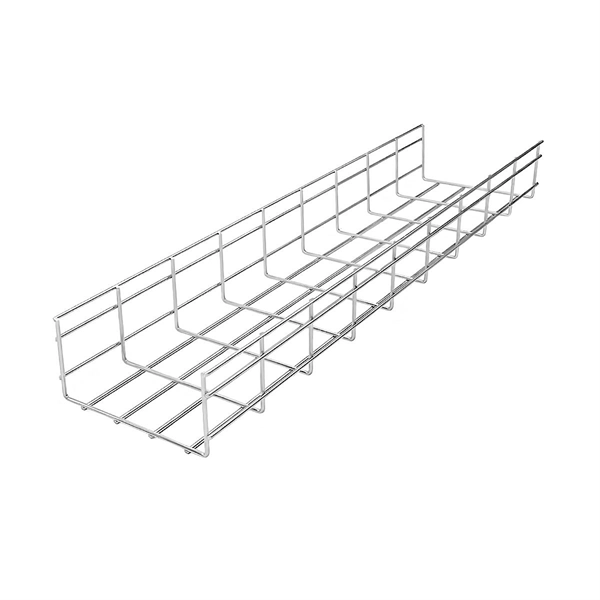

• Proper Routing and Securing: Maintain neat cable management to prevent kinks, knots, or mechanical stress .
• Connector Handling: Never touch ferrule surfaces with fingers; use dedicated cleaning tools to remove dust or liquid particles .
• Safety Precautions: Avoid looking directly into active fibers or light sources to prevent eye injury .

Testing and Verification

• OTDR and Power Meter Testing: Verify cable integrity, locate faults, and measure insertion loss .
• Visual Fault Locator (VFL): Identify breaks, bends, or misalignments in the fiber .
• Documented Workflow: Follow a disciplined sequence of inspection, cleaning, testing, and splicing to ensure reliable network performance . By combining the right tools, protective materials, and careful handling procedures, technicians can safely install, maintain, and repair flattened optical cables while minimizing signal loss and extending cable lifespan.
