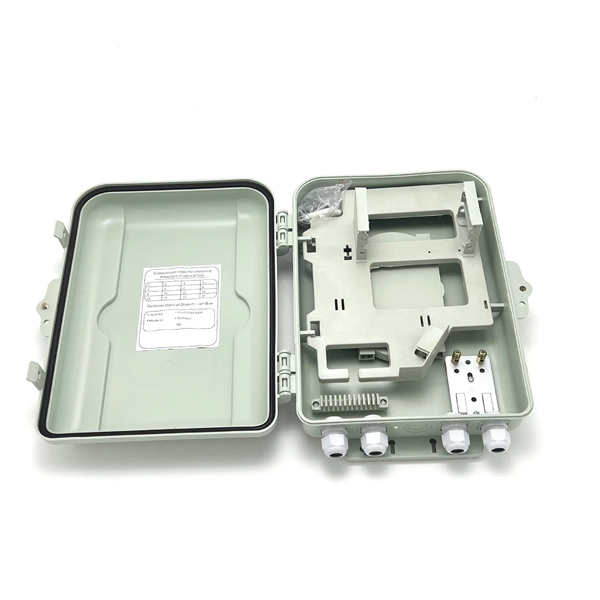

How to get fiber optic cables into a data center

Installing fiber optic cables in a data center requires careful planning, proper cable selection, organized routing, and thorough testing to ensure high performance and reliability.

1. Planning and Design

Before installation, conduct a comprehensive assessment of your data center's current and future needs. Consider factors such as bandwidth requirements, distance between racks, and potential future expansion. Create a port map detailing cabinet placements, patch panels, hardware, trunking locations, and power access points to minimize errors and optimize efficiency during installation .

2. Selecting Fiber Types

Choose the appropriate fiber type based on distance and application:

• Single-mode fiber (SMF): Ideal for long-distance connections, with low signal attenuation and high bandwidth .
• Multi-mode fiber (MMF): Suitable for shorter distances within the data center, easier to connect, and cost-effective .
• OM3/OM4 fibers: Optimized for laser-based transmission and high-speed data center applications .

3. Cable Routing and Management

• Use structured cabling: Organize cables through horizontal and vertical trays or racks to maintain airflow and prevent clutter .
• Maintain bend radius: Avoid sharp bends; typically, the bend radius should be at least 10 times the cable diameter .
• Separate fiber and copper cables: Prevent interference by routing fiber separately from copper cables .
• Horizontal and vertical routing: Route cables from patch panels to active ports using left-to-right organization for clarity and accessibility .
• Use Velcro ties: Avoid zip ties to prevent cable damage and allow easy adjustments .

4. Labeling and Documentation

• Label both ends of each cable: Include cabinet number, rack unit, port location, and cable length .
• Color-code cables: Different colors for critical vs. standard connections simplify identification .
• Maintain a documentation database: Record test results, cable types, lengths, and installation dates for future maintenance .

5. Installation Best Practices

• Avoid excessive pulling or twisting: Fiber cables are sensitive and can be damaged by stress .
• Remove packaging carefully: Prevent fibers from becoming airborne and contaminating equipment .
• Use proper cable managers: Horizontal finger-style managers for fiber and vertical managers for core cabinets improve organization and accessibility .

6. Testing and Verification

• Conduct post-installation testing: Check for continuity, signal loss, shorts, and correct polarity .
• Document test results: Include measured attenuation, link length, test personnel, and instrument calibration details .
• Verify performance: Ensure the installation meets the required bandwidth and reliability standards before going live . By following these steps, you can ensure a reliable, scalable, and high-performance fiber optic infrastructure in your data center, minimizing downtime and simplifying future upgrades.
